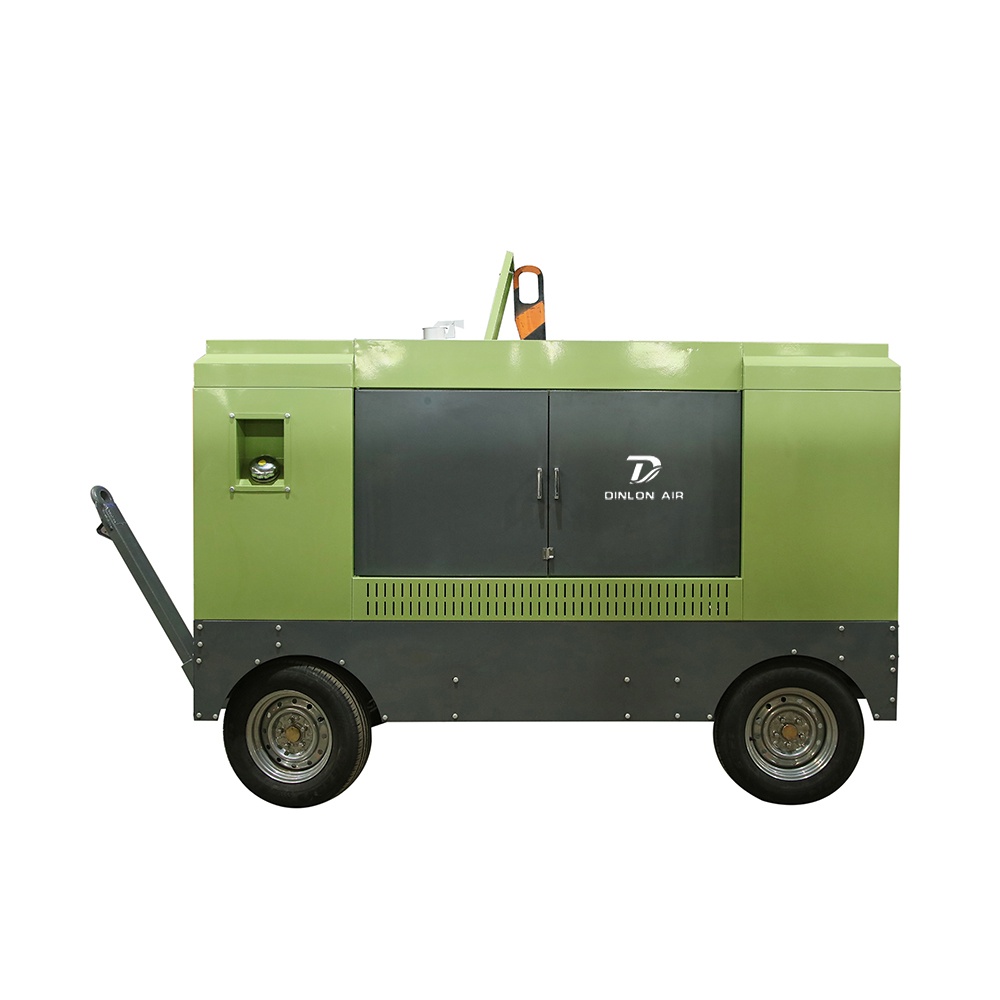

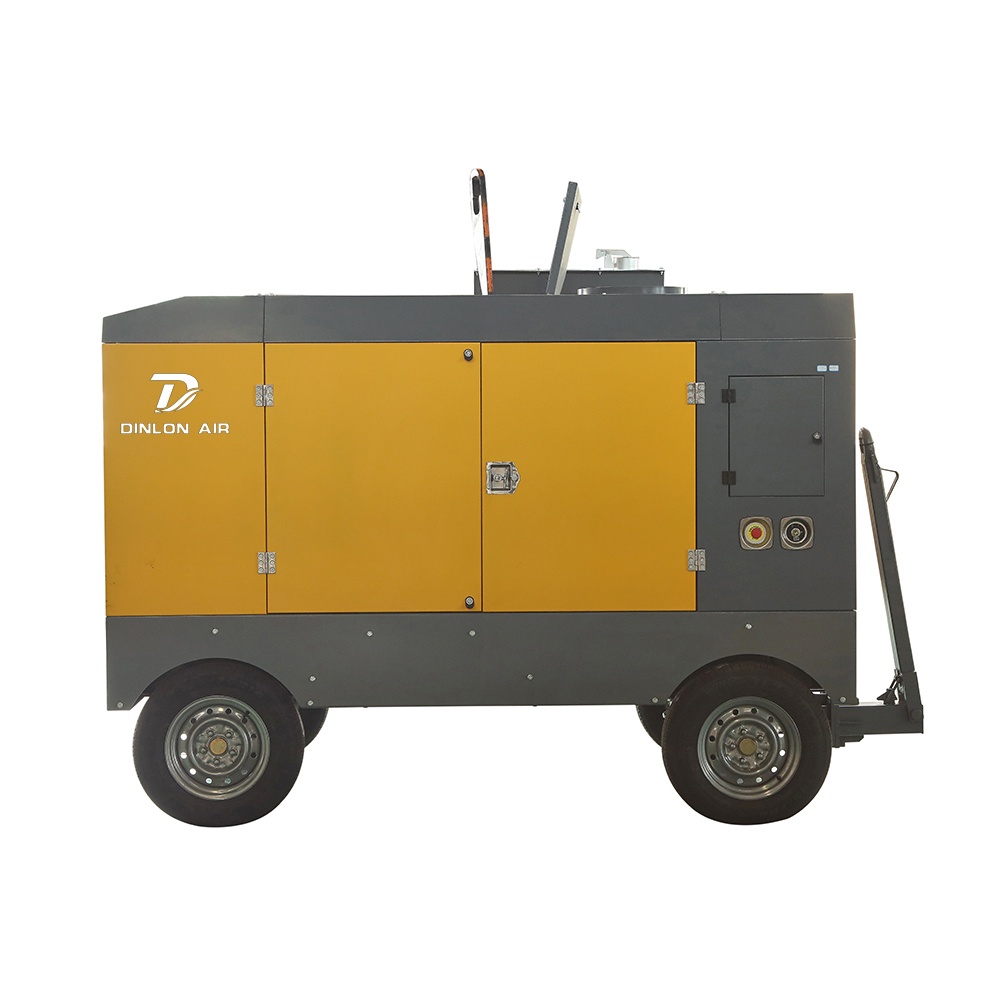

High pressure diesel driven screw air compressor

Model	DL-24/22D	DL-31-25D	DL-36/30D	DL-35/35D
Air compressor
Exhaust volume cfm	850	1100	1275	1235
Discharge pressure bar	22	25	30	35
Compression stage	Double stage compression	Double stage compression	Double stage compression	Double stage compression
Driving mode	Diesel engine driven	Diesel engine driven	Diesel engine driven	Diesel engine driven
Oil air separator capacity L	165	220	220	220
Lubricating oil capacity L	80	120	120	120
Air filter	Fleuga	Fleetguard	Fleetguard	Fleetguard
Air end	BSC	BSC	BSC	Jiuyi
Diesel engine
Manufacturer	Cummins	Cummins	Cummins	Cummins
Model	6LTAA8.9-C325	QSL8.9-C360-31	QSZ13-C550-30	QSZ13-C550-30
Rated speed/load/ un-load rpm	2200/1900/1500	2200/1800/1450	1900/1800/1400	1900/1800/1400
Power KW	239	294	410	410
Cylinders quantity/cylinder diameter/stroke	6×114×145	6X118X145	6X130X169	6X130X169
Displacement L	8.9	8.9	13	13
Cooler liquid capacity L	50	65.8	80	80
Oil capacity L	27.6	28	45.42	45.42
Fuel tank capacity L	300	450	680	680
Air filter	Fleetguard	Fleetguard	Fleetguard	Fleetguard
Oil filter	P165705	P165705	P165705	P165705
Battery	6QW-200MF	6QW-220MF	6QW-220MF	6QW-220MF
Size/Weight
Length mm	3708 (3500 without trailer)	3708 (3500 without trailer)	6000 (4000 without trailer)	6000 (4000 without trailer)
Width mm	1980	1980	1850	1850
Height mm	2492	2460	2600	2600
Weight Kg	3700	4500	6000	6000
Outlet size	G2"x1&G11/2"x1	G2"x1&G11/2"x1	G2"x1&G3/4”"x1	G2"x1&G3/4”"x1
