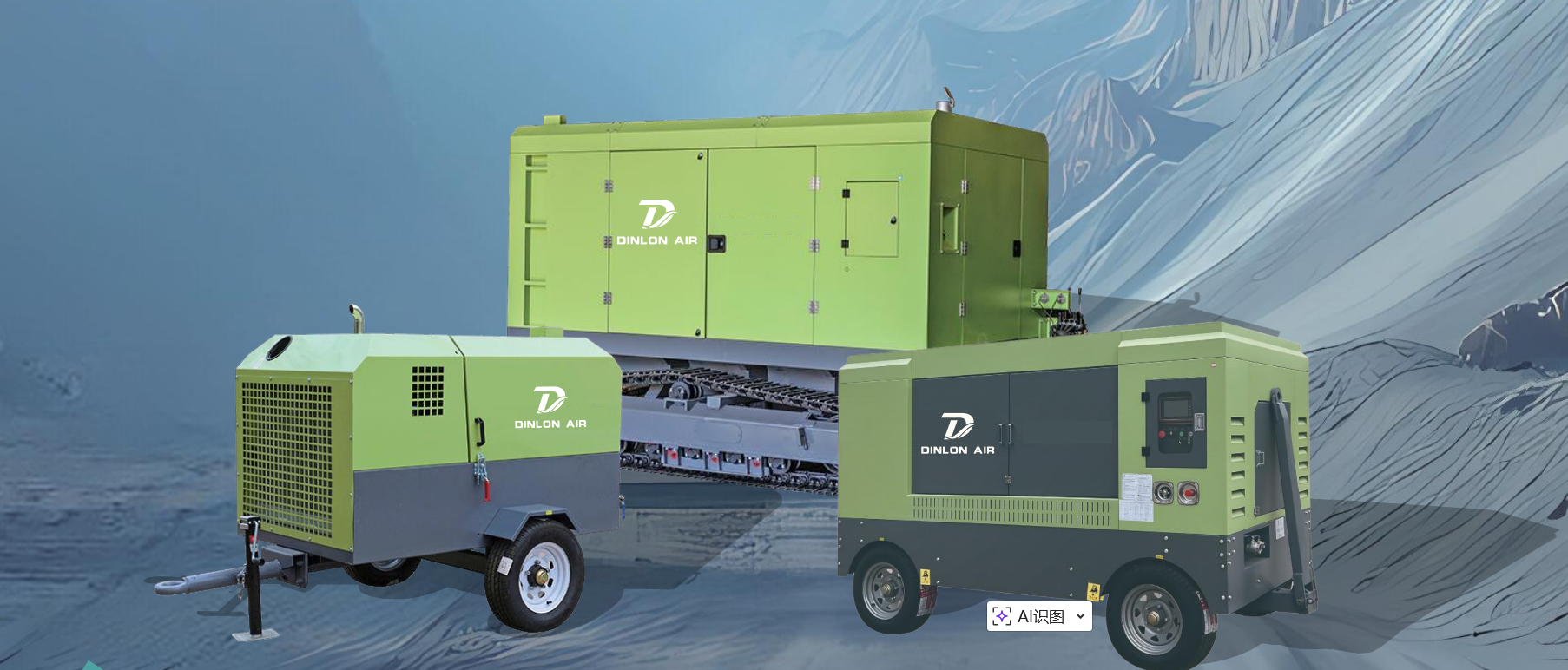

Skid mounted high pressure screw air compressors

Model	DL-6/8D	DL-12/8D	DL-12/10D	DL-15/13D
Air compressor
Exhaust volume cfm	210	450	425	530
Discharge pressure bar	8	8	10	13
Compression stage	Single stage compression	Single stage compression	Single stage compression	Single stage compression
Driving mode	Diesel engine driven	Diesel engine driven	Diesel engine driven	Diesel engine driven
Oil air separator capacity L	50	100	100	100
Lubricating oil L	32	48	48	48
Air filter	Fleetguard	Fleetguard	Fleetguard	Fleetguard
Air end	BSC	BSC	BSC	BSC
Diesel engine
Manufacturer	Xichai	Cummins	Cummins	Cummins
Model	4DW91-56G2-YM20W	4BTA3.9-C125-II	6BT5.9-C150	6BTA5.9-C180-I
Rated speed/load/ un-load rpm	2650/2300/1450	2200/1950/1350	2200/1900/1420	2200/200071420
Power KW	41	93	110	132
Cylinders quantity/cylinder diameter/stroke	4X90X100	4×102×120	6×102×120	6×102×120
Displacement L	2.54	3.9	5.9	5.9
Cooler liquid capacity L	12	17	20	20
Oil capacity L	7	15	17	17
Fuel tank capacity L	75	112	210	210
Air filter	Fleetguard	Fleetguard	Fleetguard	Fleetguard
Oil filter	B7367	WD1374	WD13145	WD13145
Battery	6-QW-80	6-QW-80	6QW-120MF	6QW-165MF
